On-Premise edition

Analyse your Alcatel CDRs.
Inside your datacenter.
Without Internet.

Natalia Analytics On-Premise is a VM appliance you deploy on your own infrastructure. Your phone taxation data never leaves your network.

GDPR Strict mode No outbound data Alcatel OXE / OXO 3 contractual modes
Request an on-premise demo Open the documentation
https://natalia.lan/analytics-cdr
LAN

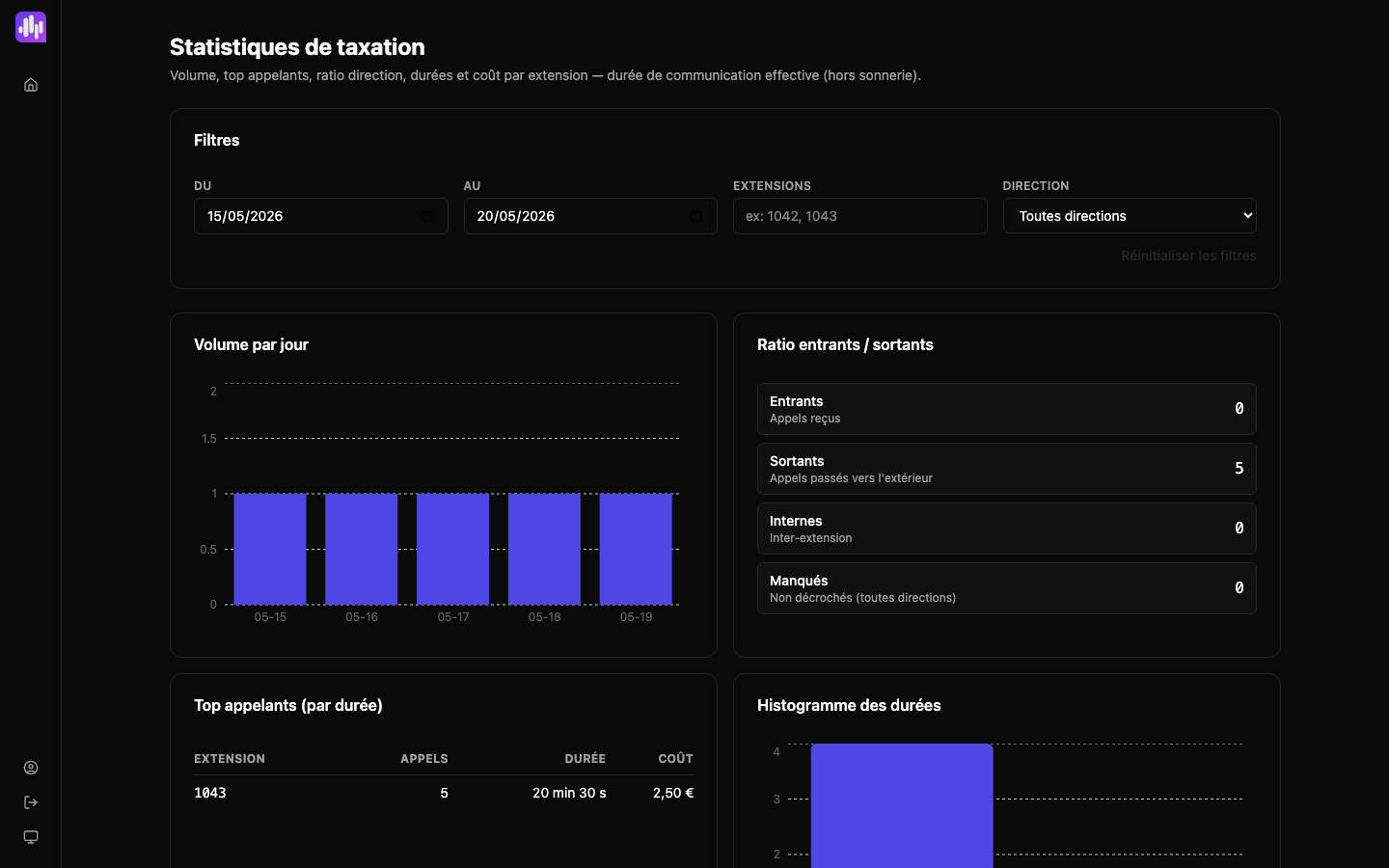

Natalia analytics CDR dashboard: volume per day, inbound/outbound ratio, top callers, duration histogram, cost per extension

Why on-premise for phone CDRs

Phone CDRs are sensitive: they contain extension numbers, calling parties, durations, and destinations. Sending them outside your network is rarely a choice, often a constraint.

Your CDRs stay inside your networkWhiteboard illustration: Alcatel PBX, Natalia appliance and your teams stay inside your premises; the public cloud is blocked at the perimeter.Your premises Alcatel PBX Natalia appliance Your teams RGPD ✓  NIS 2 ✓DPA art.28: noneCISO ✓ sovereignNetwork boundaryPublic cloudblocked at perimeter

What sets Natalia Analytics On-Premise apart

Full sovereignty

In Strict mode, no outbound connection, no DPA to sign. You remain the sole controller of your data.

Deploy in 30-45 min

OVA Debian ready to import. Guided 5-step wizard. VMware / Proxmox / Hyper-V supported.

Native Alcatel CDR analysis

Alcatel OXE and OXO supported out of the box. Taxation reports, hourly traffic, costs per extension / department.

Features

Dashboard for phone taxation: costs per extension, department, direction.

CDR traffic analysis: inbound, outbound, internal, missed.

Alerts on off-hours calls or cost overruns per department.

CSV / Parquet / JSON export for internal re-billing.

RBAC with 4 roles: Viewer, Admin, Auditor, Integrator.

Immutable audit log, exportable to your SIEM (Splunk, ELK, Sentinel).

GDPR art.17 selective erasure per extension, department, or period.

Selective pseudonymisation of phone numbers and extensions.

Inside the dashboard

Real screens from the local appliance — same data your teams see on the LAN.

Dashboard — narrowed date window

Date window

Filter by date range to isolate a campaign, an audit period, an incident.

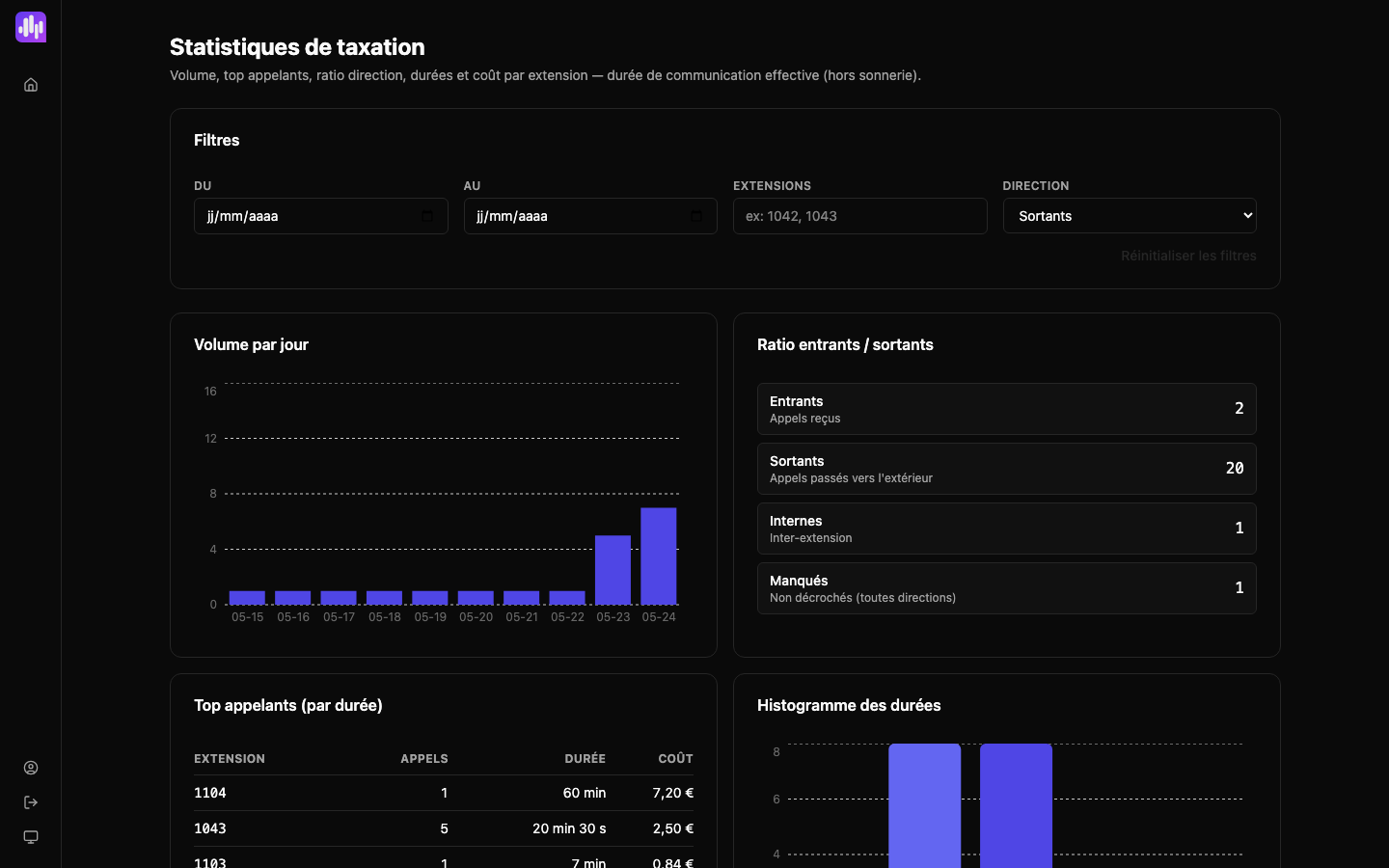

Dashboard — outbound calls only

Direction filter

Drill into outbound only to track cost per extension, per department.

Dashboard — full overview

Full overview

All directions, all extensions — the snapshot a CFO or a department head opens daily.

Volume per day · Inbound / outbound ratio · Top callers by duration · Duration histogram · Cost per extension.

Pick your sovereignty level

Three contractual modes for one appliance. Strict mode is the only mode where you stay a pure software publisher — no art.28 sub-processor relationship.

Strict +72h Support Connected
DPA required None Light Support DPA Full art.28 DPA
Outbound network None On-trigger SSH, 72h max Permanent HTTPS
Use case Bank, mutual, defense, OIV Mid-market, reactive support Qualitative analysis of conversations — Natalia Analytics SaaS
RFP cycle −3 to −6 weeks −1 to −2 weeks Standard SaaS
Want the full matrix with sub-processors, network diagrams and a decision tree? Open the canonical reference →

Natalia On-Premise vs the market

Most legacy on-premise phone analytics tools predate GDPR. They do not articulate a Strict / Connected modes choice, and they rarely expose an immutable audit log out of the box.

Natalia On-Premise Jusan CallXpress GO ComTrafic
Air-gapped Strict mode Yes, explicit, no DPA Not articulated Not articulated
Alcatel OXE / OXO native Yes Yes (multi-vendor) Yes (multi-vendor)
GDPR art.17 selective erasure Yes, audited Manual / partial Manual / partial
Immutable audit log Yes, signed Not documented Not documented
Reversibility (open formats) CSV / Parquet / JSON CSV CSV
Public pricing On request On request On request

Comparison based on public documentation of competitors as of 2026-06. We will update this table on request, with sources.

Technical prerequisites

Three sizing profiles validated on Alcatel OXE / OXO deployments. A 30% ingest headroom is already baked into the data disk.

Small Medium Large
vCPU 2 4 8
RAM 4 GB 8 GB 16 GB
System disk 20 GB 20 GB 20 GB
Data disk 20 GB 100 GB 480 GB
PBX 5 20 100
Phone lines 100 1 000 10 000
CDR / day 500 5 000 50 000
Historical depth 1 year 3 years 5 years
Concurrent admin users 3 10 25

Performance targets, all tiers: dashboard p95 < 500 ms (5 RPCs fan-out), per-RPC p95 < 200 ms at 100k rows. PBX/users hard-stop enforced by the license.

VMware vSphere / ESXi
Proxmox VE
Microsoft Hyper-V

GDPR & legal guarantees

DPA Strict (no signature needed)

Qualification: pure software publisher, no controller / processor relationship.

Light Support DPA (72h)

Art.28 §3 a-h scoped to point-in-time interventions, with intervention log.

Full art.28 DPA (Connected)

Standard SaaS DPA with sub-processor schedule (Gemini documented).

DPIA template (>5000 lines)

CNIL impact-assessment template for organizations crossing the systematic-monitoring threshold.

Ready to deploy?

Reach out for an on-premise demo on your own VMware, Proxmox or Hyper-V environment. Response within 48h.

Request an on-premise demo Open the documentation

Looking for qualitative textual analysis of your conversations on top of CDR? See Natalia Analytics SaaS →
